Automatic Production Stator Motor Winding Machine High Efficiency For Coil

Automatic Production Stator Motor Winding Machine High Efficiency For Coil

Brand Name : Nide
Certification : None
Place of Origin : China
MOQ : 1 set
Price : negotiable
Supply Ability : 200 sets per year
Delivery Time : negotiable
Packaging Details : Wooden case which is suitable for sea transport
Model Number : BXSIL4-160/160
Name : Stator Winding Lacing Machine
Function : Coil lacing
Automatic type : Fully automatic
Working station : Four
Application : various kinds of motor
Contact Now

Automatic Production Machine Stator Winding Lacing Machine High Efficiency

Quick detail:

1) This automatic stator lacing machine is used to lace stator windings.

2) This lacer machine has four working stations.

3) The lacing process is done by machine automatically.

4) All the related parameter can be programmed in touch screen.

This automatic stator coil lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

Technical data

Stator ID≤100mm
Stack Height30-160mm
Height of Coil≤65mm
Pitch time≤14s/pc(24 slots)
Air Pressure0.4-0.6MPa
Power supply380V 50/60Hz 6Kw

Machine main function and characteristic
This machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.

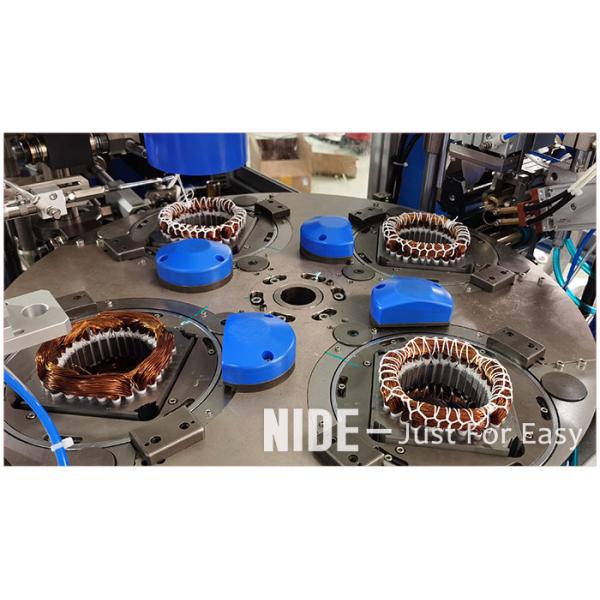

Macine working station

stator lacing machine
