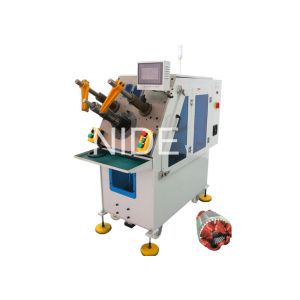

Simultaneously Wedge and Coil Inserting Machine for Induction Motor Stator

Simultaneously Wedge and Coil Inserting Machine for Induction Motor Stator

Place of Origin : China
Brand Name : Nide
Certification : None
Model Number : QX1-150/160
MOQ : 1 pc
Price : Negotiable
Packaging Details : Wooden case suitable for sea transportation
Delivery Time : 45 working days
Payment Terms : T/T, L/C
Supply Ability : 120sets
Condition : New
Working station : Single working station
Certificate : CCC
Size : Middle size
After-Sales Service : Overseas Service Center Available
Color : RAL9010 or as Per Customer Requirement
Customized service : Available
Contact Now

Simultaneously Wedge and Coil Inserting Machine for Induction Motor Stator

Quick Detail:

1. Model No.: QX1-150/160

2. Automatically insert the winding into stator slot.

3. This coil inserter machine is used for induction motor stator.

4. The winding/coil and wedge/top cover is inserted simultaneously.

5. Simple operation, low noise, fast speed and high automaticity.

6. PLC and touch screen control.


Stator coil Inserting Machine is suitable for inserting coil and wedge into stator by servo system; This type of Stator coil Inserting Machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time; wedge feeding is to be done bt stepping motor, and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface; the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire; different size stator production can be achieved by changing tooling; especially apply to micro induction motors such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.

Specifications :

Max stator O.D


Stator I.D


Max stator stack length


Slot number range

8~48 slots

Max winding feeding rate


Appropriate wire

Copper wire/Aluminum wire

Power source


Air source


Machine productivity

400pcs/ 8 hours

Machine Dimension

1800mm × 650mm × 1700 mm


about 1000Kg


This coil inserting machine can insert the winding/coil and the wedge/top cover into the stator slot simultaneously. This machine is used for induction motor stator which meet the specification in the below table.

Competitive advantages:

Simple operation, fast speed and high automation, the wedge and winding is inserted simultaneously. Labor cost saving. This machine is controlled by PLC. All the parameter could be set on the touch screen,

Information needed for coil inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5 Required productivity
6 Other technical requirement

Operation step of this coil inserting machine

  1. Power on the machine
  2. Insert the wire by winding form
  3. Adjust the tooling according to different model stator
  4. Put stator to the tooling
  5. Set the stator diameter in the touch screen then select the pre-set data.
  6. Press "start" button.
  7. Machine will automatically do coil inserting.
  8. Take out the stator

Simultaneously Wedge and Coil Inserting Machine for Induction Motor Stator

Stator after coil inserting
