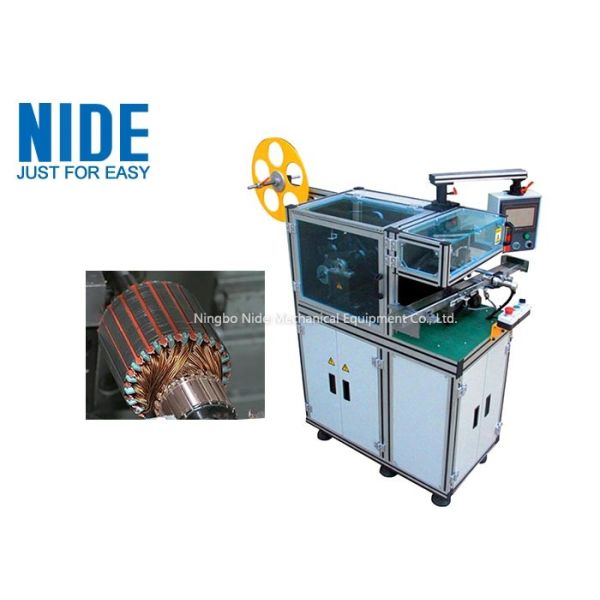

Armature wedge inserting machine
1. This armature wedge inserting machine will automatically insert
wedge into slots.
2. The rotor wedge inserting machine is used for inserting wedge to
3. The armture wedge is easy to change the tooling.
4. PLC controlled.
5. It runs in high automation degree.
Armature wedge inserting machine is used for inserting the wedge of
rotor. Armature wedge inserting machine is applied to the field of
mass production for rotor, and it is easy to change the tooling.
Moreover,the machine body is light and elaborating. The complete
machine is controlled by the Siemens programmable controller (PLC),
which is made in German. It runs in high automation degree. If only
the rotor to be processed is placed on the feeding track, the
machine will finish the work such as the rotor lifting, clamping,
shaping of the insulating paper, cutting and inserting
Armature stack length
7S/pc (if slot number is 12)
Function and feature
It is of high reliability to be under the control of Siemens PLC.
The electromechanical linkage device and the faults detection
system is mounted.
Pneumatic workpiece clamping.
The English operation screen is availble.
This armature rotor wedge inserting machine is easy for operation.
It’s helpful for customer to reduce labor cost and improve
production efficiency. And this machine can be equipped with an
automatic feeding device to achieve a fully automatic operation.
PLC and touch screen control.
